Twelve Lane Coffee Capsule Filling Sealing Machine is used for making nespresso capsules, kcups capsules, lavazza blue coffee capsules. This filling sealing machine adopt PLC touch screen control system and equiped with elevator and vertical packing machine.
Table of Contents
Advantage Feature of Twelve Lane Coffee Capsule Filling Sealing Machine
- Adopt high accuracy vertical or horizontal screw feeding device, which is suitable for coffee power, tea power, cocoa power and milk powder. The filling differenc is in 0.2g
- PLC Control and multi-language Touch Screen Available.
- Food grade SUS304 Stainless Steel Made, electric component and transmission parts adopt international famous brands , such as Mitsubishi Electric, Siemen PLC touch screen, schneider switch, omron rely and temperature control, airtac air cyclinder and pneumatic pressure-regulated valve
- Stable working , high intelligent, accurate filling, strong sealing result and easy to maintain
Working Process of Twelve Lane Coffee Capsule Filling Sealing Machine

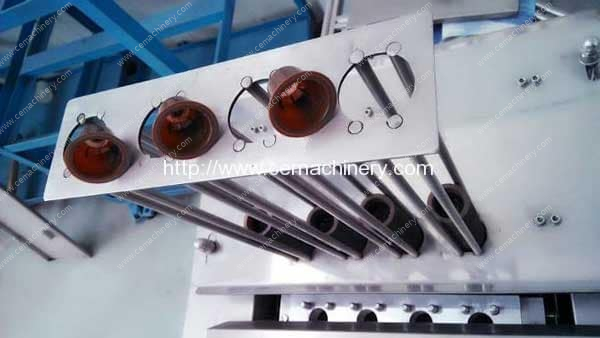

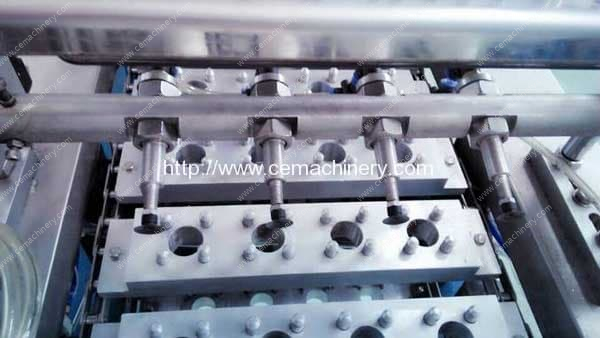

Automatic Coffee Capsules Falling Automatic Coffee Capsules Filling & Tamp
Automatic absorb coffee powder outside coffee capsules
Automatic Nitrogen Injection before filling Automatic aluminium cover putting
Sealing head are made of aluminum, with the help of heaters. Sealing temperature can be adjusted between 0°C-400°C double sealing.

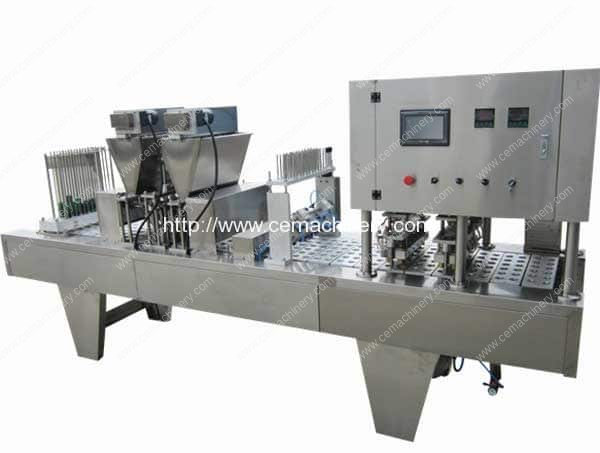

Structure of Twelve Lane Coffee Capsule Filling Sealing Machine
Delivery Package of Twelve Lane Coffee Capsule Filling Sealing Machine
Parameter Table of Linear Type Coffee Capsule Filling Sealing Machine
Model | RML-4 | RML-8 | RML-12 | RML-16 |
Capacity | 700-1000 | 1500-2000 | 3000-4000 | 6000-8000 |
Application | Standard size of Nespresso, Kcup, Lvazza, etc. filling volume can be adjusted! | |||
Sealing material | plastic roll film and pre-cut aluminum lids(Recommend) | |||
Voltage | 380V/50Hz/3phases (also can be customized!) | |||
Power | 2kw/h | 2.5kw/h | 4kw/h | 7.5kw/h |
Air pressure | 0.6-0.95MPa | |||
Air consumption | 0.65m3/min | 0.7m3/min | 0.85m3/min | 0.95m3/min |
Dimension | 3000*650*1700mm | 3100*650*1700mm | 3200*750*1700mm | 3200*880*1700mm |
Machine Weight | 600Kg | 650Kg | 750Kg | 950Kg |
Company Profile
Romiter Group is a market leading designer and a manufacturer of coffee capsule filling sealing machinery, include coffee capsule packing machine, coffee capsules filling sealing machine, nespresso capsules filling sealing machine, k-cup filling sealing machine, lavazza blue capsules filling sealing machine, coffee pod filling sealing machine, coffee pod packing machine.
