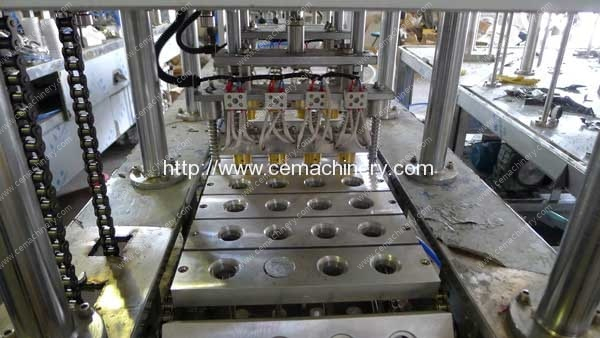

Linear Type Nespresso Compatible Coffee Capsules Filling Sealing Machine is specially designed for coffee capsules products packing. Our coffee capsule filling and sealing machines applied with famous electrical and pneumatic components. Linear Type Nespresso Compatible Coffee Capsules Filling Sealing Machine can automatic complete empty capsules falling, coffee powder feeding, aluminium lid falling and double time hot sealing process.
Table of Contents
Advantage Feature of Coffee Capsules Filling Sealing Machine
- All the parts of machine contact with powder are made of stainless steel SUS-304. Machine frame use U-steel with Waterproof and rust prevention process, Out packed by Stainless steel #304.
- Fully automatic. PLC control can keep the machine work stable, PLC touch screen control with English and Chinese languages.
- No capsule, no fill alarm (if capsule is missed in position then this position will not be filled and sealed)
- All components are from famous brand company, all of them are produced under strict standards, so their quality are amazing good
- moving molds are made by Aluminum material , extraordinary durable and sanitary.
Parameter Table of Linear Type Coffee Capsule Filling Sealing Machine
Model | RML-4 | RML-8 | RML-12 | RML-16 |
Head Number | 4 | 8 | 12 | 16 |
Capacity | 2400 | 3200 | 4800 | 6400 |
Application | Standard size of Nespresso, Kcup, Lvazza, etc. filling volume can be adjusted! | |||
Sealing material | plastic roll film and pre-cut aluminum lids(Recommend) | |||
Voltage | 380V/50Hz/3phases (also can be customized!) | |||
Power | 4.5kw/h | 5.5kw/h | 6.5kw/h | 7.5kw/h |
Air Pressure | 0.6-0.95MPa | |||
Air Consump.(m3/min) | 0.65 | 0.7 | 0.85 | 0.95 |
Dimension(mm) | 3000*650*1700 | 3100*650*1700 | 3200*750*1700 | 3200*880*1700 |
Weight (kg) | 600Kg | 650Kg | 750Kg | 950Kg |
Working Video of Nespresso Capsules Filling Sealing Machine
